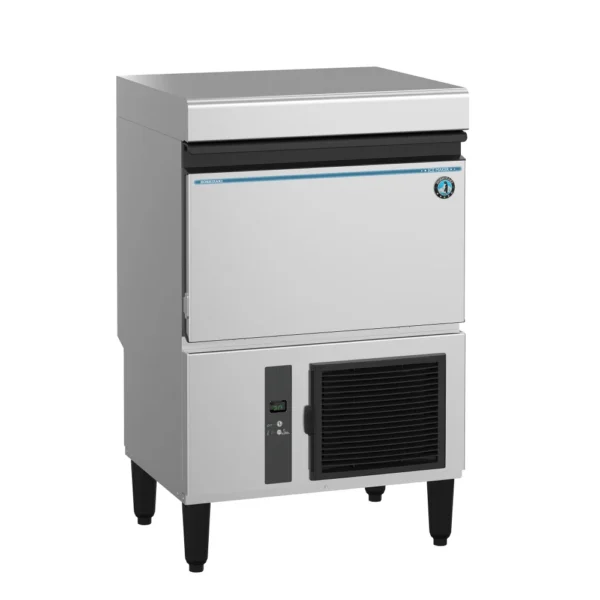

IM-50BAA-Q Sphere Cube Icemaker
$6,420.00
- Description
- Reviews (0)
- Overview and Features
- Store Policies
- Inquiries
Description
Electrical Specs
Single phase, 115v/60/1, 6′ 5″ ft cord with NEMA 5-15 plug, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1500 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/2″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Utility Consumption
15.7 kWh per 100 lbs @ 90/70, 69 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. Five Years: Parts warranty on air-cooled condenser coil.
Be the first to review “IM-50BAA-Q Sphere Cube Icemaker”
The IM-50BAA-Q is capable of producing approximately 50 lbs of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 36 lbs of built-in storage capacity (ft3)*. The IM-50BAA-Q is a Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz. / 201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
PFAS Warning: This product contains: PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl) oxy]-, polymer with 1,1,2,2-tetrafluoroethene. For more information about PFAS chemicals in this product, visit the California Safer Consumer Products website.
- Dimensions: 24-3/4″ W x 20-3/4″ D x 39- 1/2 ” H
- Up to 50 lbs or 500 spheres of ice produced per 24 hours
- Up to 36 lbs of built-in storage capacity (ft3)
- Produces individual sphere cubes
- Durable stainless steel exterior
- Front in, back out airflow
- Ice scoop included
- Foam injected polyurethane for insulation (HFC free)
- Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
- R-134a refrigerant (7.1 oz. / 201 g)
- Heat Rejection:1500 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 7 – 113psig
- Voltage range: 104 – 127V
- 5 amps (15 Amp Max fuse)
- 15.7 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
