C-80BAK Cubelet Ice Machine (Standard Height)
$4,610.00
- Description
- Reviews (0)
- Overview and Features
- Store Policies
- Inquiries
Description
Electrical Specs
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 Plug, Amperage: 2.8, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1400 BTU/hr, Refrigerant Charge: R290 (1.9 oz. / 53.86 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight
134 lbs.
Utility Consumption
8.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Two Years: Parts & Labor warranty on entire machine.
Be the first to review “C-80BAK Cubelet Ice Machine (Standard Height)”

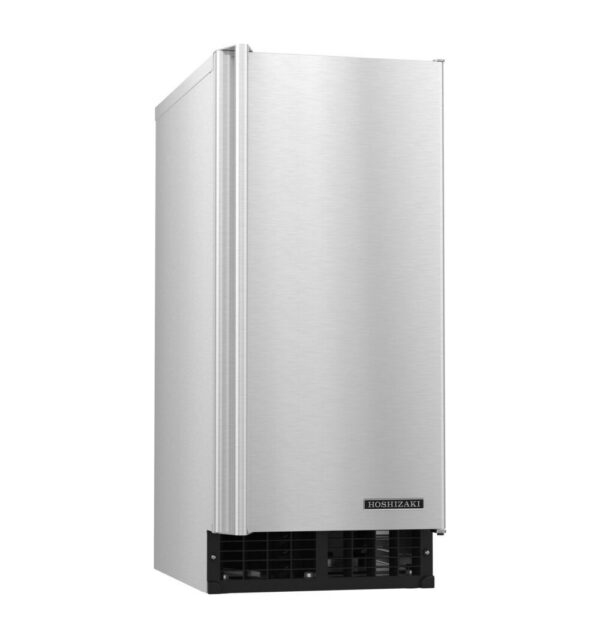

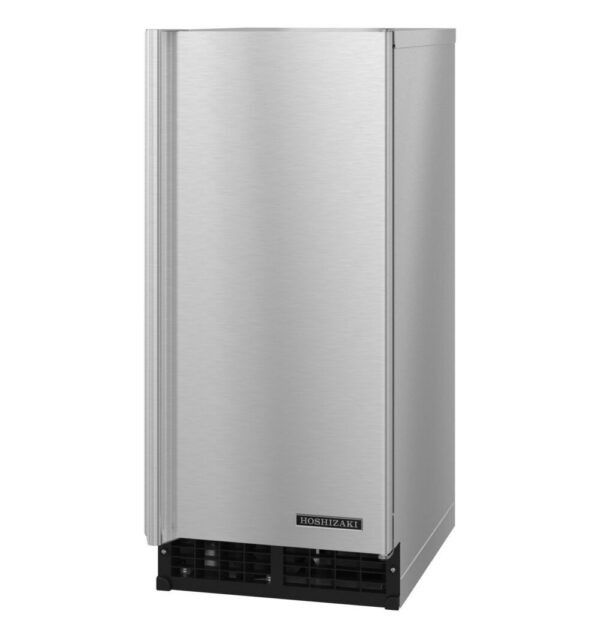

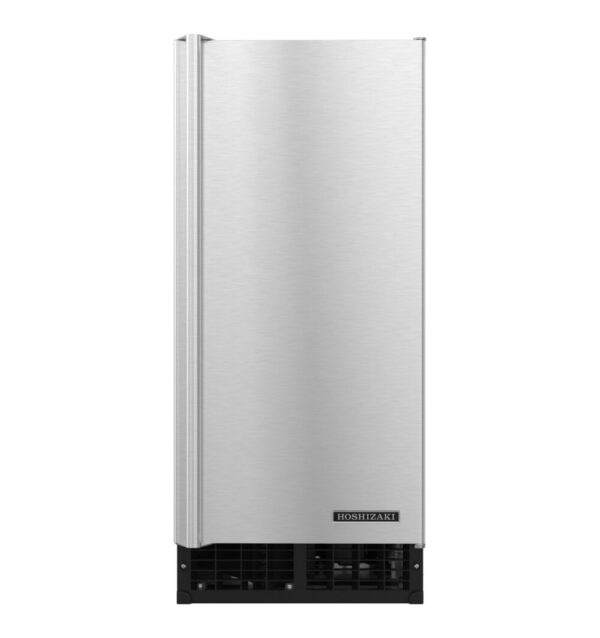

This compact undercounter Cubelet ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAK is capable of producing approximately 92 lbs. of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 27 lbs. of ice at a time. The undercounter design is less than 34″ tall. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.
- Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
- Up to 92 lbs of ice produced per 24 hours
- Up to 27 lbs of built-in storage capacity (ft3)

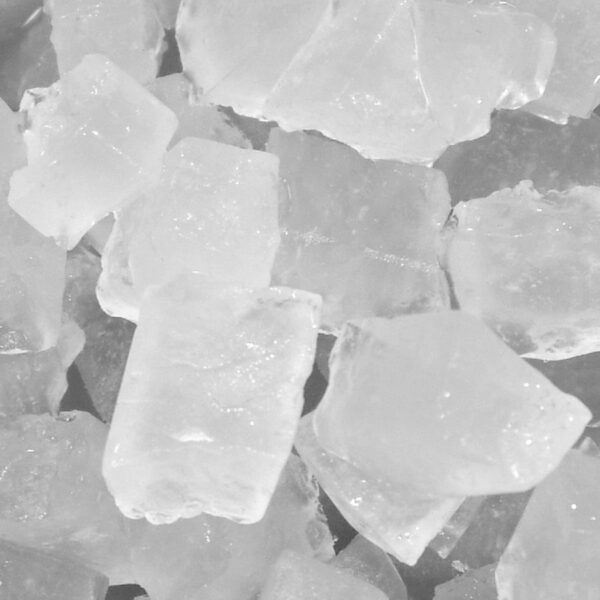

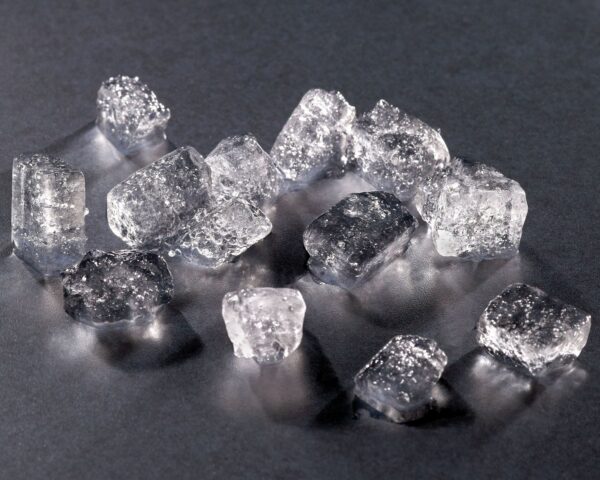

- Produces mini cubelet nugget-style ice
- Undercounter design is less than 34″ tall
- Front in, front out airflow
- UL approved for outdoor use
- Swing style field reversable door
- Environmentally friendly R290 refrigerant
- Heat Rejection: 1,400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 2.8 amps (15 Amp Max fuse)
- 8.5 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Two Years: Parts & Labor warranty on entire machine.
- One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
